A note about sigmas#
We are regularly asked about the “sigma” levels in the 2D histograms. These are not the 68%, etc. values that we’re used to for 1D distributions. In two dimensions, a Gaussian density is given by:
pdf(r) = exp(-(r/s)^2/2) / (2*pi*s^2)
The integral under this density (using polar coordinates and implicitly integrating out the angle) is:
cdf(x) = Integral(r * exp(-(r/s)^2/2) / s^2, {r, 0, x})
= 1 - exp(-(x/s)^2/2)
This means that within “1-sigma”, the Gaussian contains 1-exp(-0.5) ~ 0.393
or 39.3% of the volume. Therefore the relevant 1-sigma levels for a 2D histogram of samples is 39% not 68%. If you must use 68% of the mass, use the levels
keyword argument when you call corner.corner
.
We can visualize the difference between sigma definitions:
import corner
import numpy as np
# Generate some fake data from a Gaussian
np.random.seed(42)
x = np.random.randn(50000, 2)

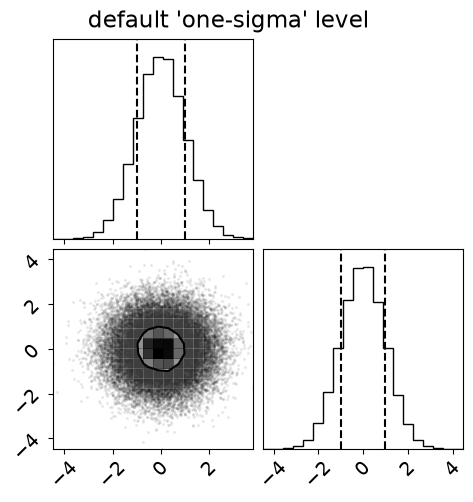

First, plot this using the correct (default) 1-sigma level:
fig = corner.corner(x, quantiles=(0.16, 0.84), levels=(1 - np.exp(-0.5),))
_ = fig.suptitle("default 'one-sigma' level")

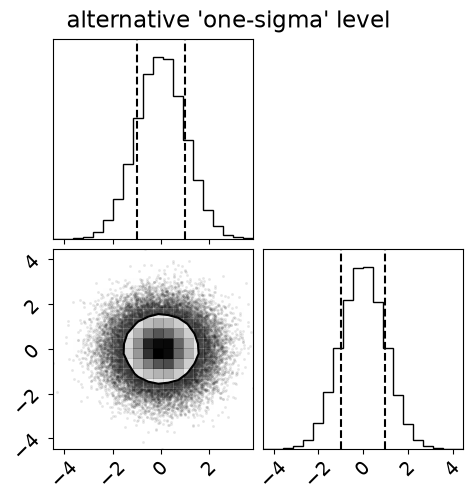

Compare this to the 68% mass level and specifically compare to how the contour compares to the marginalized 68% quantile:
fig = corner.corner(x, quantiles=(0.16, 0.84), levels=(0.68,))
_ = fig.suptitle("alternative 'one-sigma' level")
